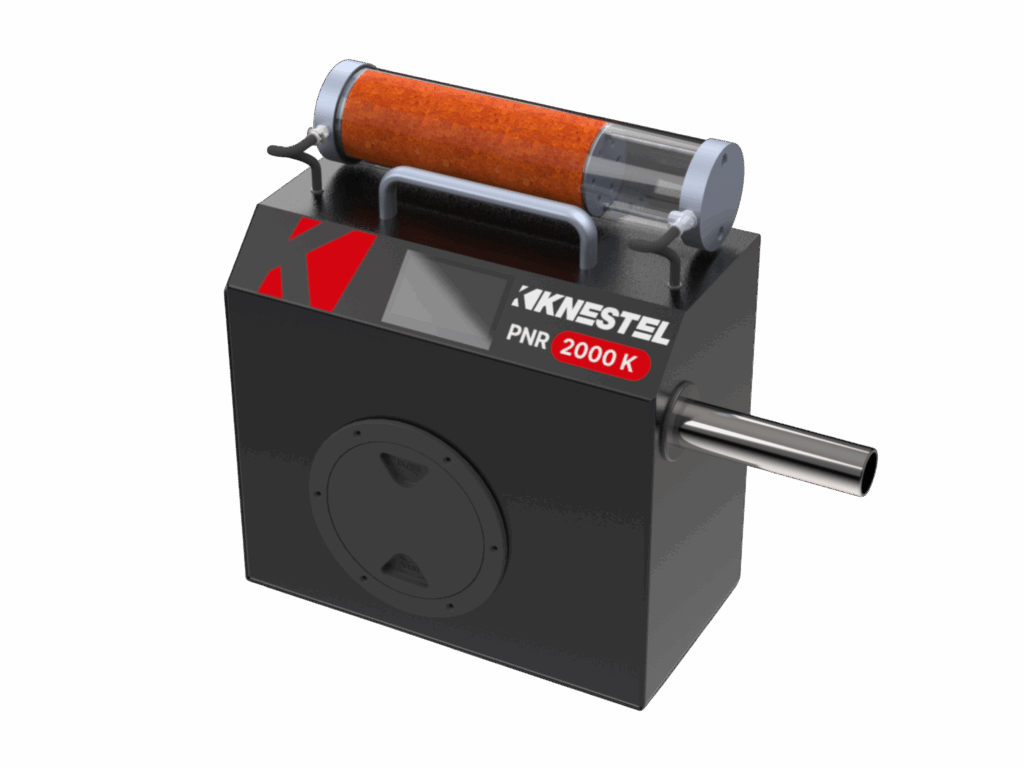

PN Reference Calibrator 2000 K
Advanced version for precise particle calibration | Calibration of exhaust gas particle analyzers
The PNR 2000 is the new generation of our PN reference calibrator. The salt particle generator was specifically designed for modern PN and NPTI applications and replaces the previous model with improved portability, reduced maintenance, and enhanced monitoring capabilities.
Based on proven NaCl aerosol technology, the PNR 2000 generates reproducible reference concentrations for laboratory and field applications.
Kompakt & mobil
Mit optionalem Batteriebetrieb
2000 K Partikel
Partikel Generierung von bis zu 2.000.000 #/cm³
Aerosol aus 0,9% NaCl
stabilere Aerosolerzeugung
Details on how it works
The PNR 2000 K generates a polydisperse, thermally stable NaCl aerosol with a defined particle size and an adjustable reference concentration.
The average particle size is continuously monitored and controlled.
An integrated particle counter with a self-test function ensures internal quality assurance.
Clean Charging Technology ensures stable particle charging with reduced maintenance requirements.
Technical Details
- Reference concentration: 50,000 #/cm³ – 2,000,000 #/cm³
- Quick warm-up phase for efficient calibration processes
- Aerosol generation using a 0.9% NaCl solution
- Clean Charging Technology for reduced maintenance requirements
- Compact, rugged housing with integrated tie-down points
- Battery operation available for mobile use
- Simultaneous calibration of multiple devices
- Continuous monitoring of the average particle size
- Integrated particle counter with self-test function
- Not affected by changes in ambient humidity
- Can be integrated into existing infrastructure
Application areas
- Calibration of Exhaust Particulate Matter Measurement Devices
- Initial calibration in laboratory
- Field calibration in workshops
- as a test and calibration device for repairs
- Validation of NPTI Systems
- Emissions test benches
- Laboratory Qualification
- Mobile testing applications
- Production and development testing
Ready for the next generation of PN calibration?
Highlights
of the PNR 2000 K
Mobility/Housing:
Compact & rugged, built-in tie-down points (optional trolley)
Particle generation:
Maximized particle generation of up to 2,000,000 #/cm³
Battery operation:
optional batteriebetrieben möglich für maximale Flexibilität
Parallel operation
Suitable for calibrating multiple devices at the same time
| MERKMAL | VORGÄNGERMODELL | PNR 2000 |
|---|---|---|
| Mobilität / Gehäuse | Eher stationär ausgelegt | Kompakt & rugged, integrierte Zurrpunkte (optional Trolley) |
| Partikel Generierung | 1 Mio. Partikel | 2 Mio. Partikel |
| Batteriebetrieb | Nicht vorgesehen | Optional möglich |
| Kalibrierung mehrerer Geräte | Eingeschränkt | Für mehrere Geräte gleichzeitig geeignet |
| Partikelgrößen-Überwachung | Basisfunktion | Kontinuierliches Monitoring & Regelung |
Are you
interested?
FAQ on the PN Reference Calibrator with Salt Particle Generator
What is the PNR 2000 K PN reference calibrator?
The PNR 2000 K is a portable reference instrument from KNESTEL for calibrating PN (particle number) measuring instruments. It is the successor model to the PNR 1000K and combines a NaCl aerosol generator (0.9% saline solution) with integrated monitoring of the relevant particle parameters and supports the calibration of multiple devices in parallel.
What reference areas does PNR 2000 K cover?
-
Reference concentration: 50,000 to 2,000,000 #/cm³
-
Average particle size: 70 nm or 80 nm with ±5 nm stability
-
Optional: 50 nm
-
Flow rate: at least 7 l/min (higher rates available upon request)
Why is calibration of PN measurement devices required?
Effective January 1, 2023, the emissions test (HU/AU) for Euro 5b/Vb and Euro 6/VI vehicles with compression-ignition engines, in accordance with EU regulations, will also include the measurement of soot/particles. The calibration process and conformity assessment of particle counters must comply with specific guidelines, including the AU device calibration guideline [VkBl 11/2021-No. 131] and accreditation according to DIN EN ISO/IEC 17025. The PNR 2000 K is the successor model to the PNR 1000 K from KNESTEL, and both devices were developed to meet these requirements.
What are the key features and highlights of the PNR 2000 K?
The key benefits and features of the KNESTEL reference calibrator include:
- Ability to calibrate multiple particle counters simultaneously.
- Durable carrying case with space for additional accessories.
- Traceability in accordance with EN 17025 – ideal for official emissions testing.
- Built-in self-test function (without particle generation).
- Monitoring of the average (mean) particle size.
- Use of a particle counter that does not require hazardous materials or expensive consumables.
- Aerosol generation using an inexpensive saline solution (NaCl).
- Low maintenance requirements thanks to contactless measurement technology and so-called Clean Charging Technology.
The PNR 2000 offers several key improvements:
- Significantly shorter warm-up period
- Aerosol generation using a 0.9% NaCl solution instead of harmful soot
- Reduced maintenance requirements thanks to Clean Charging Technology
- Compact, rugged housing with integrated tie-down points
- Optional battery operation for mobile applications
- Simultaneous calibration of multiple devices is possible
- Continuous monitoring and control of the average particle size
-
Integrated particle counter with self-test function
-
High stability even when ambient humidity changes
In what scenarios or areas is the PNR 2000 K used?
- Calibration of exhaust gas particle analyzers (PN devices)
- Initial calibration in the laboratory
- On-site calibration in auto repair shops
- Used as a testing and calibration tool during repairs
- Parallel calibration of multiple devices
- Test benches and development environments
- Laboratory ApplicationsMobile Service and Field Applications
- Quality Assurance and Validation of Measurement Systems
What are the compliance / normative standards that this calibrator meets?
- AU Instrument Calibration Guideline [VkBl. 11/2021-No. 131] for the calibration of particle counters.
- Requirement of VkBl. 24/2020, No. 190 for calibration by a service provider accredited according to DIN EN ISO/IEC 17025.
Does the device require a lot of maintenance?
Maintenance requirements are relatively low, but some work is necessary to ensure proper operation:
- Regular cleaning or flushing of the NaCl generator nozzle.
- Check hoses, containers, or connections for leaks.
- Replace or refill the desiccant (silica gel) as needed (according to the manual).
- Make sure the NaCl solution is correct and clean.
- Install software updates from KNESTEL as needed.
What is included in the package, and which accessories are optional?
The instruction manual is included in the package. Some spare parts and accessories include:
- Silica gel for drying (desiccant).
- Screw-top bottles for NaCl solution.
- The nozzle (lower/upper part) of the salt generator.
- A display (touchscreen) and interfaces (e.g., RS-232, USB) for system parameters and firmware/software updates.
Optional:
-
Available in a battery-powered version
-
with Transport Trolley
-
50 nm option and/or higher flow rate
What kind of support does KNESTEL offer?
Our full-service support includes: initial consultation, OEM customization, integration services, compliance software, training, white papers, user manuals, FAQs, and ongoing maintenance support. We help you effectively integrate the particle counter into your exhaust gas testing and analysis.
